Still using a measuring tape or an optical theodolite?
Do you need a tool that fulfils all measuring tasks on your construction site with ease, regardless of your profession?
The Leica Builder does it all for you.
For anybody working on or around a site with the need of a simple, intuitive, yet innovative, long-lasting and powerful measuring tool. Regardless of your profession, the Builder will amazingly accelerate your work flow. From simple tasks to professional all-day use, the Builder Series offers a scalable product family that exactly meets your needs.

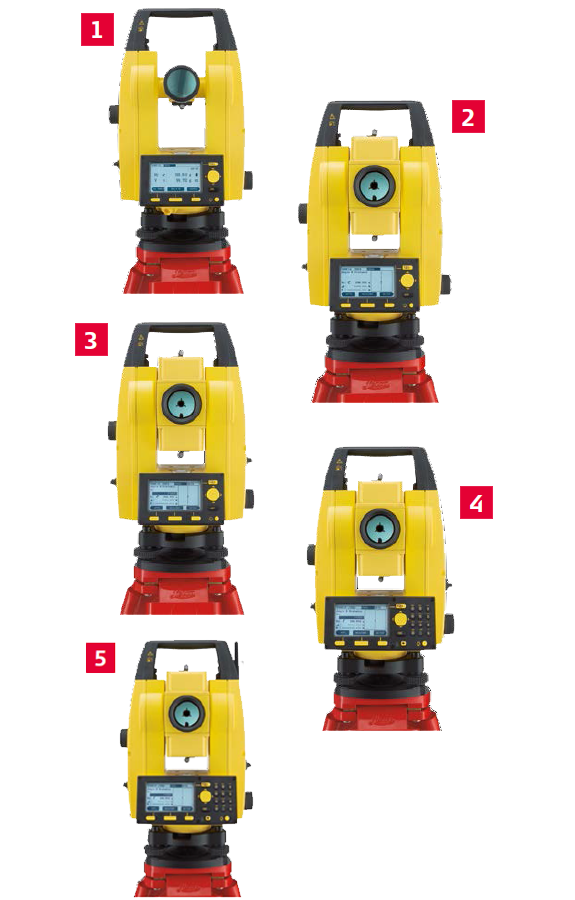

Theodolite with laser plummet, 1 keyboard, tribrach, Li-Ion batterie, charger, user manual and carry case.
Article no. 772727
Total Station with EDM, serial RS232 interface, laser plummet, 1 keyboard, tribrach, 2× Li-Ion battery, charger, flat prism, reflector pole, user manual and carry case.
Article no. 772729
Total Station with EDM, internal memory, serial RS232 interface, USB compartment, laser plummet, 1 keyboard, tribrach, 2× Li-Ion battery, charger, flat prism, reflector pole, USB to Mini-USB transfer cable, user manual and carry case.
Article no. 772731
Total Station with EDM, internal memory, serial RS232 interface, USB compartment, laser plummet, 1 alphanumeric keyboard, tribrach, 2× Li-Ion battery, charger, TrueZero prism, reflector pole, USB to Mini-USB transfer cable, user manual and carry case.
Article no. 772733
Total Station with multifunctional EDM, internal memory, serial RS232 interface, USB compartment, Bluetooth®, laser plummet, 1 alphanumeric keyboard, tribrach, 2× Li-Ion battery, charger, TrueZero prism, reflector pole, USB to Mini-USB transfer cable, user manual and carry case.
Article no. 772735
| Technical Data | Builder 100 | Builder 200 | Builder 300 | Builder 400 | Builder 500 |
|---|---|---|---|---|---|
| Full Power Site Software |  |
||||
| Wireless communication | |
||||
| Full RedDot range | |
||||
| Prism measurement mode | |
|
|||
| MEAS / REC switch key | |
|
|||
| Cell-phone style use | |
|
|||
| Industrial USB memory stick | |
|
|
||
| Volumes calculation | |
|
|
||
| Data import / exportt to USB stick | |
|
|
||
| Direct DXF download | |
|
|
||
| 1-Person station | |
|
|
|
|
| Tracking mode | |
|
|
|
|
| PC / Handheld interface | |
|
|
|
|
| Laser distance measure | |
|
|
|
|
| Control line set-up | |
|
|
|
|
| Theft protection | |
|
|
|
|
| 3 languages | |
|
|
|
|
| Levelling aid | |
|
|
|
|
| Dual axis compensator | |
|
|
|
|
| Laser plummet | |
|
|
|
|
| Data Storage / Communication | |||||
| Internal memory [points] | - | - | 15’000 | 50’000 | 50’000 |
| Angle Measurement | |||||
| Internal memory [points] | 9"/6" | 9"/6" | 9"/6" | 9"/5" | 9"/5"/3" |
| Distance Measurement | |||||
| To glass prism | 500 m (3’500 m) | 500 m (3’500 m) | |||
| Without reflector (90% reflective) | - | 80 m | 120 m | 15 m | 250 m |
| To reflective tape (60 × 60 mm) | - | 250 m | 250 m | 15 m | 250 m |
| Battery type / life | Li-Ion/approx. 20 hours* | ||||
| Environmental standard | IP 55 | ||||
| Warranty | 1 year / up to 3 years with valid CCP | ||||
