Levelling can be so easy with digital levels from Leica Geosystems. Push the button and heights, height differences and distances are automatically displayed. There will be no more misreading and interpretation errors in reading the staff.
It is also possible to use it as an optical level, however compared to a conventional level, the digital levels effortless, fast measurements could save you valuable time and reduce errors. Our digital levels even include additional error reducing functions such as built-in tilt sensors, preventing the system from measuring if the user operates outside the compensator range.
One-touch does it all

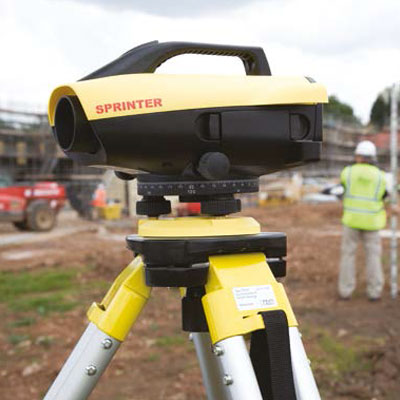

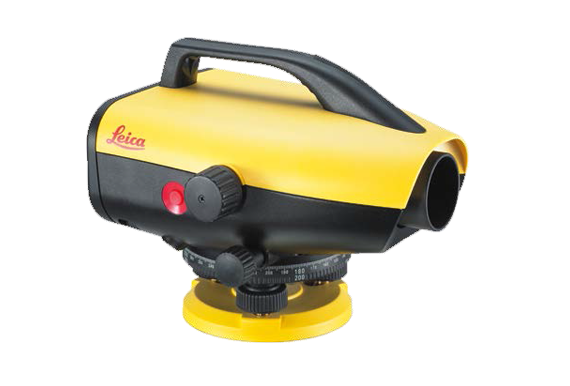

The Leica Sprinter 50 is the perfect levelling tool for daily tasks and basic work on the construction site. The user just aims, focuses the staff like an optical level, and measures by pressing one single button. The data is displayed almost instantly. Misreadings are eliminated, and error reducing functions, such as the tilt sensor, prevent the system from measuring if the user operates outside the compensator range.
Electronic level, standard deviation 2.0 mm, includes container, strap adjustment tools, user manual, leaflet and 4× AA batteries.
Article no. 762628
Advanced opportunities

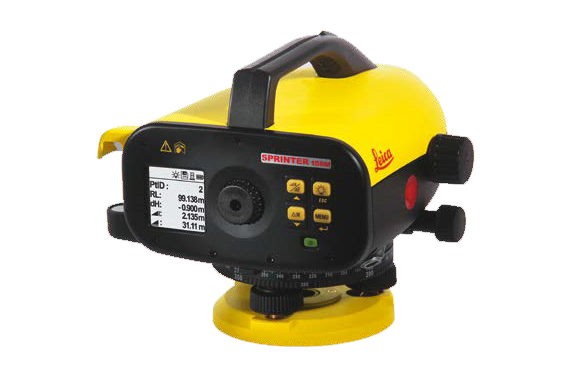

For more complex construction tasks, the Sprinter 150 automatically determines delta height and reduced level. The Sprinter 150M and 250M are the perfect tools for advanced construction levelling tasks. They can store up to 2’000 measurements, and the user can download and transfer these for further calculations to a PC with Excel® easier than ever before via USB. The Sprinter’s onboard software, with functionalities such as Line Levelling and Cut & Fill as well as monitoring, facilitates all levelling jobs significantly.
Electronic level, standard deviation 1.5mm, includes container, strap, adjustment tools, user manual and 4× AA batteries.
Article no. 762629
Electronic level with internal memory, standard deviation 1.5 mm, includes container, strap, adjustment tools, user manual, 4× AA batteries, USB cable and CD.
Article no. 762630
Electronic level with internal memory, standard deviation 1.0mm, includes container, strap, adjustment tools, user manual, 4× AA batteries, USB cable and CD.
Article no. 762631
Multilingual Function
The Sprinter 150/150M/250M are featured with multiple languages onboard. This allows the user to choose their preferred language.
| Technical Data | Sprinter 50 | Sprinter 150/150M | Sprinter 250M |
|---|---|---|---|
| Height accuracies | Standard deviation height measurement per 1 km double run (ISO 17123-2) | ||
| – Electronic measurement* | 2.0 mm | 1.5 mm | 1.0/0.7* mm |
| – Optical measurement | With standard aluminum E-scale/Numeral staff: 2.5 mm | ||
| – Single staff reading | Standard deviation: 0.6 mm (electronic) and 1.2 mm (optical) at 30 m | ||
| Distance accuracies | Standard deviation distance measurement 10 mm for D < 10 m and (Distance in m × 0.001) for D > 10 m | ||
| Range | 2 –100 m (electronic) | ||
| Measuring modes | Single and Tracking | ||
| Time for single measurement | <3 sec | ||
| Compensator | Magnet damped pendulum compensator (range +/– 10 min) | ||
| Telescope | Magnification (optical) 24× | ||
| Data storage | Up to 2’000 points (only 150M) | Up to 2’000 points | |
| Environmental conditions | IP 55 | ||
| Power supply | AA dry cells (4 × LR6/AA/AM3 1.5 V) | ||
| Weight | <2.5 kg | ||
| PROTECT service offering | Manufacturer's Warranty: Lifetime No Cost period: 2 years | ||

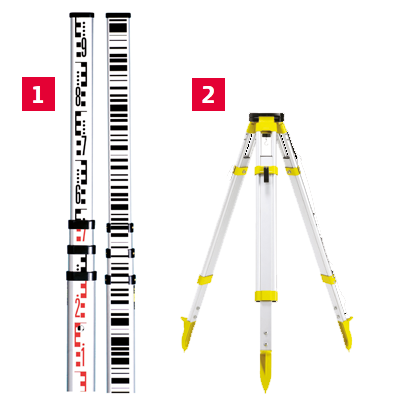

5 m, 4 sections, Sprinter barcode/E-Scale cm-graduation, with circular bubble, in transport bag (Std. version).
Article no. 741882
Fibreglass dual face staff 3 m, 1 section, Sprinter barcode/E-scale cm graduation, with circular bubble and transport bag.
Article no. 764452
Medium duty aluminium tripod with carrying strap and fast clamps.
Article no. 767710
