Unbeatable with slopes

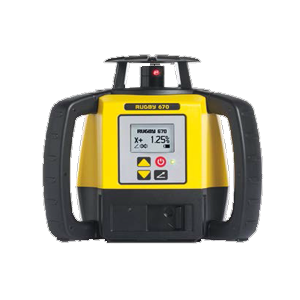

Semi-automatic, single grade laser
The Rugby 670 is a semi-automatic, single slope laser designed for the contractor that does mostly flat work, but occasionally needs to create a single slope such as a driveway.
Rugby 670 with carrying case, Rod Eye Basic receiver and rechargeable Lithium-Ion batteries.
Article no. 6008621 Additional packages available.

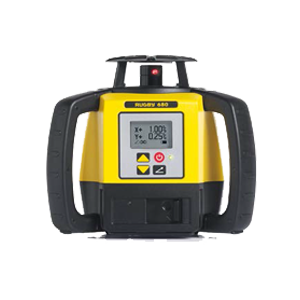

Semi-automatic, dual grade laser
The Rugby 680 is a semi-automatic, dual slope laser designed for the contractor that does mostly flat work, but occasionally needs to create a slope in two axes such as a small parking area.
Rugby 680 with carrying case, Rod Eye Basic receiver and rechargeable Lithium-Ion batteries.
Article no. 6008623 Additional packages available.

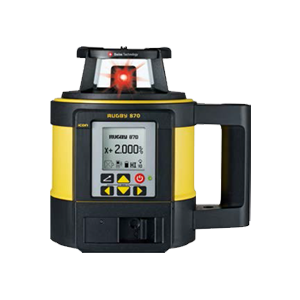

Fully-automatic, single grade laser
The Rugby 870 is a fully-automatic, single grade laser for the general construction contractor that needs a level or single slope for flat work, site preparation, septic installation, trenching and more. Available with a two-way remote control.
Rugby 870 with with carrying case, Rod Eye 180 Digital RF receiver, RC800 remote, Li-Ion battery and charger.
Article no. 6006038 Additional packages available.
Fully-automatic, dual grade laser
The Rugby 880 is a fully-automatic, dual grade laser for the general construction contractor that needs a level, single or dual slope for flat work, site preparation, parking areas and more. Available with a two-way remote control.
Rugby 880 with with carrying case, Rod Eye 180 Digital RF receiver, RC800 remote, Li-Ion battery and charger.
Article no. 6006052 Additional packages available.
| Technical Data | Rugby 670 | Rugby 680 | Rugby 870 | Rugby 880 |
|---|---|---|---|---|
| Functionality | Semi-automatic, self-levelling horizontal with dial-in, single axis | Semi-automatic, self-levelling horizontal with dial-in, dual axis | Fully automatic, self-levelling horizontal and grade, single axis | Fully automatic, self-levelling horizontal and grade, dual axis |
| RF remote capable (radius) | 300 m | |||
| Grade range | ±8% SG | ±8% DG | ±15% SG | ±15% in either axis ±10% and ±3% in both axes400 m |
| Range (diameter) | 800 m (with RE Basic), 1100 m (with RE 140 / 160) | 1300 m (RE 140 / 160 / 180) | ||
| Self-levelling accuracy* | 1300 m (RE 140 / 160 / 180) | |||
| Self-levelling range | ±1.5 mm @ 30 m | |||
| Self-levelling range | ±5° | ±6° | ||
| H.I. elevation alert |  |
|||
| Bump alert | |
|||
| Rotation speeds | 10 rps | 5, 10 rps | ||
| Laser diode type / class | 635 nm / Class 1 | 635 nm / Class 1 | ||
| Battery life (alkaline / Li-Ion)** | 60 hours / 40 hours @ 20°C | 60 hours / 45 hours @ 20°C | ||
| Environmental standard | IP 67 | IP68 / MIL Standard 810G | ||
| PROTECT service offering | Manufacturer's Warranty: Lifetime No Cost period: 3 years | Manufacturer's Warranty: Lifetime No Cost period: 5 years Knockdown warranty: 2 years | ||
