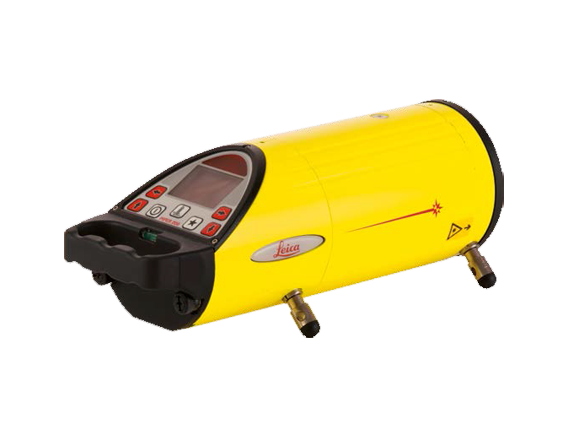

The world’s most versatile pipe laser

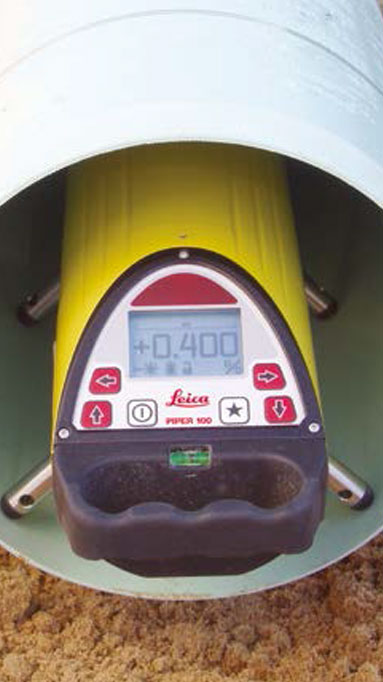

Built with a rugged aluminum housing, these pipe lasers perform powerfully even in tough jobsite conditions. The Leica Piper is the only pipe laser that fits inside a 100 mm (4 inch) pipe.
Piper 100, remote, target, Li-ion battery. Charger, car adapter cable and carrying case.
Article no. 748704
Piper 200, remote, target, Li-ion battery. Charger, car adapter cable and carrying case.
Article no. 748710
Article no. 746157
Article no. 725858
Article no. 815613
Article no. 746158
| Technical Data | Piper 100 / 200 |
|---|---|
| Laser type | 635 nm (red), laser class 3R |
| Laser output | 4.75 mW maximum |
| Working range | 200 m |
| Grade range | –10% to +25% |
| Self-levelling range | –15% to +30% |
| Line movement | 6 m at 30 m |
| Battery type* | Lithium-Ion, 7.4 V/3.8 Ah |
| Operation/charge | 40 h/4 h |
| Operating temperature range | –20°C to +50°C |
| Dimensions (diameter × length) | 96 × 267 mm |
| Weight | 2 kg |
| Construction | Cast aluminium |
| Environmental standard | IPX8 |
| Wireless remote | Front, up to 150 m – Back, up to 10 m |
| PROTECT service offering | Manufacturer's Warranty: Lifetime No Cost period: 2 years / extendable by 3 years if purchased |
