Uncovering safer, faster, more

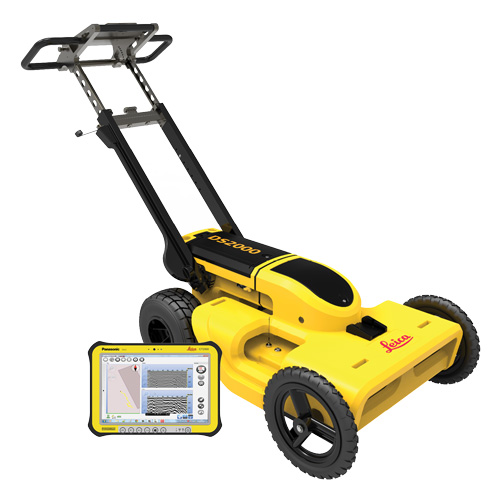

There’s a lot going on underground that you need to know about before you ever start to dig. The Leica DS2000 Utility Detection Radar finds all potential threats, including non-conductive pipes and fibre optics, increasing safety by lowering the risk of accidentally hitting underground assets.
Increase safety, speed up work and lower asset management costs with the ability to prevent hazardous outages and collect more information. The Leica DS 2000 betters your business by making it safer, faster and more efficient.
Leica DX Manager - Key Benefits
700 MHz frequency

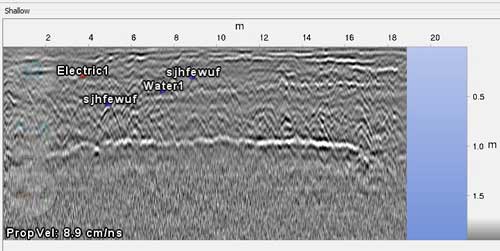

The 700 MHz antenna permits the user to see small shallow targets, up to a depth 2-3 meters depending on the soil conditions.
700 MHz frequency
The 700 MHz antenna permits the user to see small shallow targets, up to a depth 2-3 meters depending on the soil conditions.
Toughbook Tablet and Interfaces
| Model | Leica DS 2000 4-Wheels |
|---|---|
| Antenna footprint | 40 x 50 cm |
| Hardware channels | 2 |
| Antenna central frequencies | 250 MHz and 700 MHz |
| Antenna orientation | Perpendicular, broadside |
| Sampling frequency | 400 kHz |
| Data Acquisition speed | More than 10 km/h |
| Scan rate per channel for 512 samples per scan | 381 scans per second |
| Scan interval | 42 scan per meter |
| Positioning | 2 integrated encoders – GPS and/or TPS |
| Power consumption / supply | 13.3 W / Rechargeable SLAB (Sealed Lead Acid Battery) 12 V DC, 12 Ah |
| Operating temperature range | –10°C to +40°C |
| Weight | 27 kg |
| Protection | IP65 |
Leica DS2000 Starter Kit – Scope of delivery
Leica DS2000 Surveyor Kit – Scope of delivery
Leica DS2000 Utility Mapping Kit – Scope of delivery
