Leica 3D Disto

Recreating the real world

The high-precision Leica 3D Disto is used whenever the use of conventional measuring tools is only possible with a great deal of time and effort. With the various measurement functions you can record all spatial situations precisely and use the data afterwards in your customary software environment. With the realistic data you can produce the final parts directly. The time-consuming template and modification work during installation is no longer necessary. The fully digitalised workflow saves valuable time.

Leica 3D Disto with 3D Disto software for Windows®

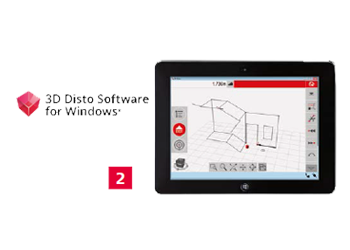

Leica 3D Disto with a licence for the Leica 3D Disto software for Windows®. The intelligent software on a Windows® device controls the Leica 3D Disto, automatically carries out all complicated calculations in the background and only supplies all the relevant information.

Article no. 844692

Licence for Leica 3D Disto software for Windows®

Windows License for Leica 3D Disto software for operation systems Microsoft Windows 7 or higher. Single license, valid for one Leica 3D Disto.

Article no. 784472

Specifications

Leica 3D Disto with 3D Disto software for Windows®
Leica 3D Disto •
License for 3D Disto Software for Windows® •
Remote control RM100 •
Power supply for 3D Disto •
4 country specific power cords for worldwid use •
USB memory stick •
Self-adhesive target points •
Ruler (for measuring hidden points) •
Leica GZM3 target plate •
USB cable 1
Quickstart •
Technical specifications
Distance in m
Tie distance accuracy in mm		 10, 30, 50 m
1, 2, 4 mm
Range 0.5 to 50 m / 1.7 to 165 ft
Distance in m
Ø of the laser dot in mm		 10 m: ~7 mm x 7 mm
30 m: ~9 mm x 15 mm
Angle measuring range
horizontal
vertical
360°
250°
Self-levelling range tilt sensor ±3°
Digital pointfinder 1x, 2x, 4x, 8x zoom
File format Import: DXF, CSV
Export: DWG, DXF, TXT, CSV, JPG
Data interface USB cable connection
WLAN
Operating time 8 h
Batteries Li-ion rechargeable
Charging time 7 h
Protection class IP 54
Dimensions Ø x H 186,6 x 215,5 mm
Weight 2.8 kg
Range of remote control (IR) 30 m
System requirements for a Windows® device
(not included in the scope of delivery)
Operating system Windows 7 or higher
Recommended screen resolution Minimum 1000 × 680 pixels, desktop or touchscreen
Further recommendations Use of a pen for the touchscreen, replacement batteries, robust housing
Following tablet computers are tested and
recommended by Leica Geosystems AG
Microsoft Surface Pro 3 - i5 128 GB, WiFi, 12", Windows 10 pro
Leica CC 80 (Icon) 7", Windows 8.1 pro
