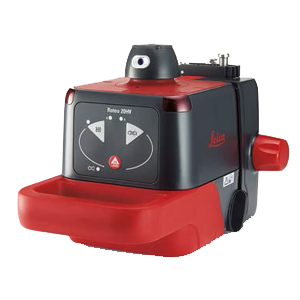

The ideal entry level model
The Leica Roteo 20HV is the ideal rotating laser for basic users. Its easy-tounderstand keypad is intuitive to operate. The package includes a complete set of accessories for interior applications with remote control, wall mount bracket and target plate.
Leica Roteo 20HV rotating laser, manual wall mount bracket, RC360 remote control, battery (AA) for the remote control, battery holder for alkaline batteries, red target plate, red laser glasses and batteries for laser..
Article no. 772789

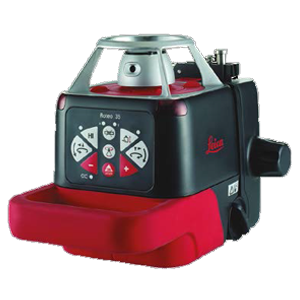

The all-in-one rotating laser
The Leica Roteo 35 impresses everyone with its powerful features and complete set of accessories for every application, especially for interior jobs. The wall mount bracket allows convenient motorised control of the laser beam height by using the combined remote control/detector or by manual adjustment.
Leica Roteo 35 WMR rotating laser, motorised wall mount, RRC360 combined remote control/ detector unit with clamp, 9V battery for the combined unit, battery holder for alkaline batteries, rechargeable batteries, international charger, red target plate and red laser glasses.
Article no. 765752

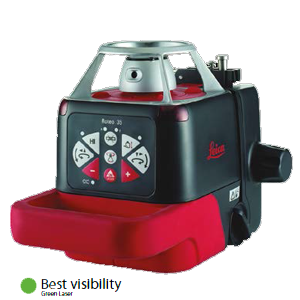

Top visibility and working distance
The Leica Roteo 35G has all the characteristics of the Leica Roteo 35. In addition, it has a green laser beam for better visibility in very bright conditions and over long distances. The pioneering green laser beam is four times more visible to the human eye, so with this laser you have the best possible visibility
Leica Roteo 35G rotating laser, motorised wall mount, RRC350G combined remote control/ detector unit with clamp, 9V battery for the combined unit, battery holder for alkaline batteries, rechargeable batteries, international charger, green target plate and green laser glasses.
Article no. 798056
| Technical Data | Roteo 20HV | Roteo 35 | Roteo 35G |
|---|---|---|---|
| Range | Up to 150 m radius with laser receiver | ||
| Self-levelling accuracy | ±3 mm at 30 m | ||
| Automatic self-levelling laser | Horizontal, vertical | ||
| Self-levelling range | ±4.5° | ||
| Rotation speed | Variable 0, 150, 300, 450, 600 rpm | ||
| Scanning angle | Variable between 2° and 36° | ||
| Wall mount bracket | Manual | Motorised | |
| Dimensions laser (H × W × D) | 189 × 136 × 208 mm (without wall mount bracket) | ||
| Weight with batteries | 1.7 kg | ||
| Laser type | 635 nm / Class 3R | 532 nm / Green / Class 3R | |
| Battery types | Alkaline D cells,2 × 1.5 V | Alkaline D cells, 2 × 1.5 V or rechargeable battery pack (NiMH) | |
| Battery life | Up to 160 hours(alkaline batteries) | 50 hours (rechargeable),Up to 160 hours (alkaline batteries) | 25 hours (rechargeable),Up to 40 hours (alkaline batteries) |
| PROTECT service offering | Manufacturer's Warranty: Lifetime No Cost period: 2 plus 1 years with registration | ||

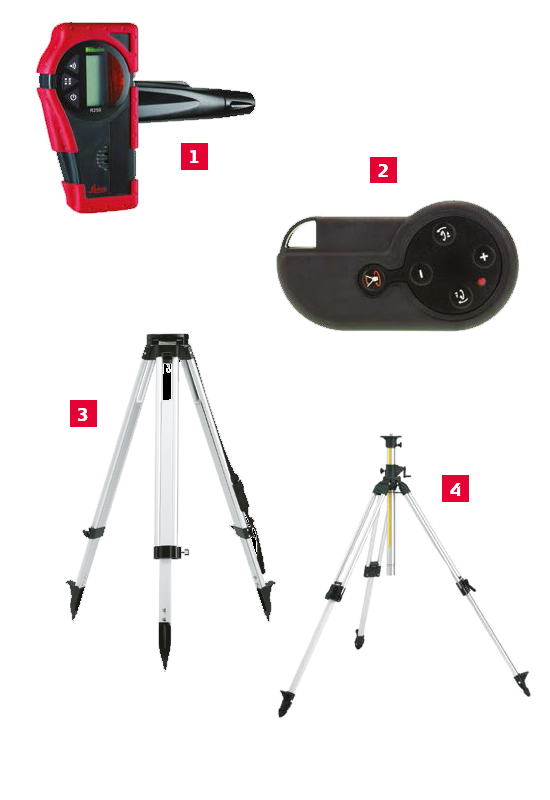

For locating the red reference laser beam.
Article no. 772793
For locating the red reference laser beam.
Article no. 762771
Article no. 772795
Article no. 833120
Light-weight with shoulder strap and side clamp screws.
Article no. 789913
Professional, multifunctional aluminium elevator tripod with shoulder strap, fast clamps and bubble, min. working height 84 cm, max.extension 246 cm (incl.extendable centre column), with mm- scale, exchangeable rubber feet.
Article no. 768033
