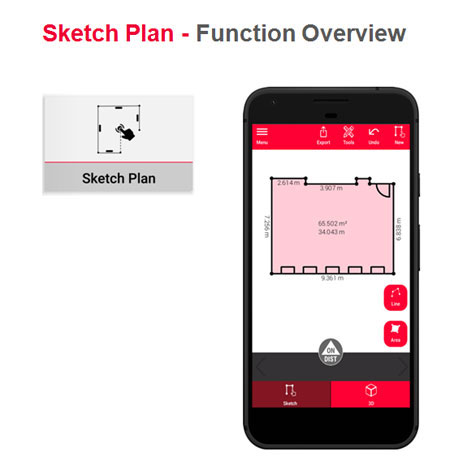

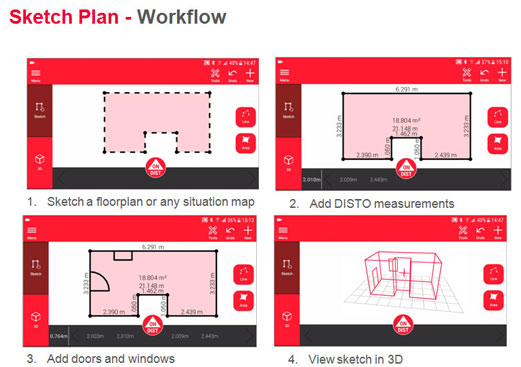

  • Draw lines and areas by tapping or swiping
  • Add DISTO measurements and the sketch is automatically auto-scaled
  • Add wall openings, doors and windows
  • Navigate your sketch in 3D
  • Export in JPG or PDF format for easy sharing
  • Compatible with every DISTO supporting Bluetooth connectivity
Vintech

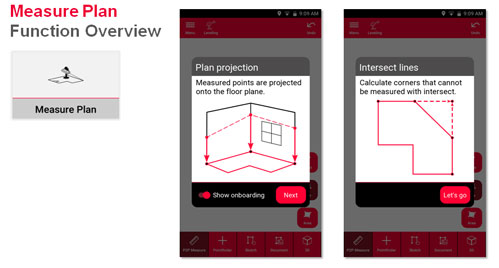

  • Point-to-Point technology for measuring irregular and big shapes

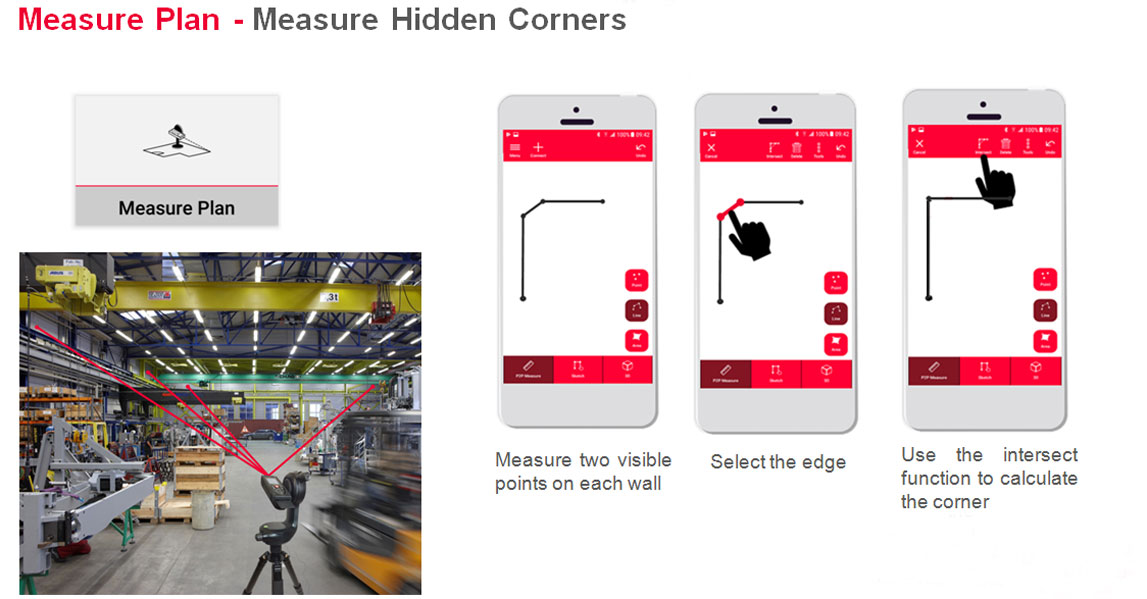

  • Calculate hidden corners with the intersect function
  • Export in JPG, PDF and 2D/3D/Raw CAD format
  • Compatible with DISTO S910 and DISTO X3/X4 on DST 360
Vintech

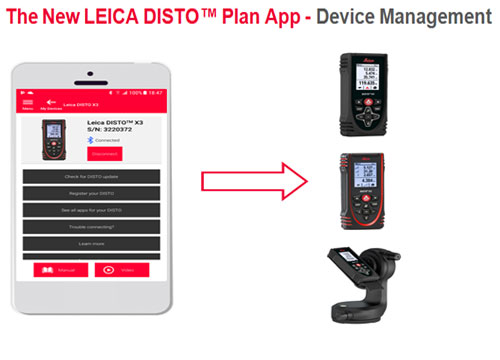

    With Leica DISTO Plan you can
    manage your DISTO Hardware

  • Extend Warranty
  • Registration
  • Firmware Update
  • Manuals
Vintech
Vintech

Technical Data

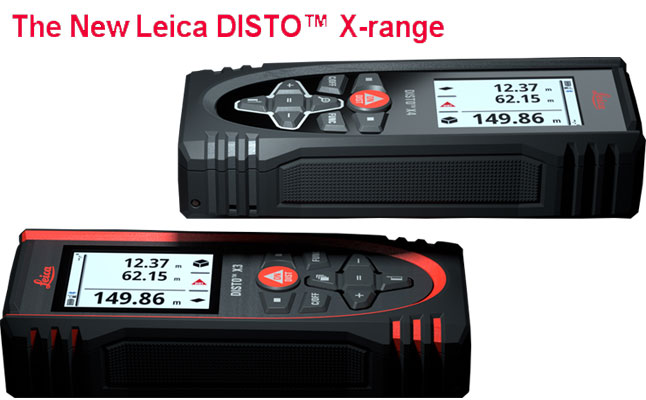

Leica DISTO™ X3 Leica DISTO™ X4
Range (ISO 16331-1 certified) 0.05 up to 150 m 0.05 up to 150 m
Typ. distance measuring accuracy (ISO 16331-1 certified) ± 1.0 mm ± 1.0 mm
Tilt sensor 360 ° ± 0.2 ° 360° ± 0.2 °
IMU sensor for Smart Room X X
P2P Range (requires Leica DST 360) Hz 360 °
V - 64 ° to > 90 ° 		Hz 360 °
V - 64 ° to > 90 °
P2P Accuracy (requires Leica DST 360) @ 2, 5, 10 m
± 2, 5, 10 mm 		@ 2, 5, 10 m
± 2, 5, 10 mm
Digital Pointfinder - 4-fold zoom
Display 2“ size, 320x240 pxs. color display 2“ size, 320x240 pxs. color display
Bluetooth® smart X X
Transfer of 3D data via Bluetooth® smart X X
Batteries 2 x AA size Alkaline 2 x AA size Alkaline
Measurements per set of batteries 4‘000 measurements, 8h operation 4‘000 measurements, 8h operation
Protection IP65, 2m drop tested IP65, 2m drop tested
Dimensions 132 x 56 x 29 mm 132 x 56 x 29 mm
Weight 184 g 188 g
