Fully protected in the harshest conditions
To be used with the Leica Digicat locators to trace the route of buried utilities and provide depth estimation, when using a locator with depth estimation capabilities.
Article no. 100t: 795946 / 300t: 798651
To be used with the Leica Digicat xf locators to trace the route of buried utilities and provide depth estimation, when using a locator with depth estimation capabilities.
Article no. 100t xf: 798648 / 300t xf: 798649

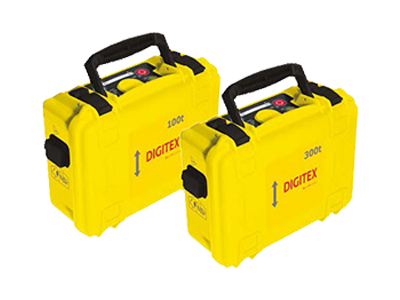

| Technical Data | Digitex 100t | Digitex 300t | Digitex 100t xf | Digitex 300t xf |
|---|---|---|---|---|
| Operating transmission frequencies | • 8.192 kHz • 32.768 kHz • Mixed 8/33 | • 8.192 kHz • 32.768 kHz • Mixed 8/33 • 512 Hz • 640 Hz | ||
| Output power | 4 levels | |||
| Induction (Max) | 4 levels | |||
| Direct connection (when connected to a buried utility with an impedance of 300 Ohms) | Up to 1w max | Up to 3w max | Up to 1w max | Up to 3w max |
| Battery type | 4 × D alkaline (IEC LR20), supplied | |||
| Battery Life (Typical use at 20°C) | 30 hrs intermittent use | 15 hrs intermittent use | 30 hrs intermittent use | 15 hrs intermittent use |
| Weight | 2.4 kg including batteries | |||
| Dimensions | 113 mm (H) × 206 mm (D) × 250 mm (W) | |||
| IP Rating (Case lid closed) | IP 67 | |||
| IP Rating (Case lid open) | IP 65 | |||
| Warranty | 1 year | |||

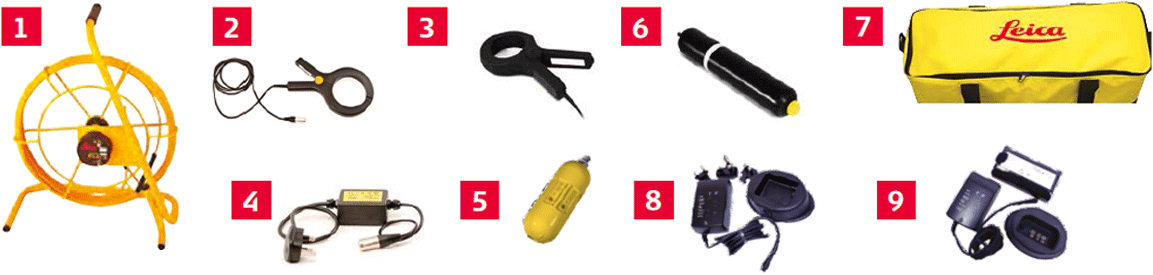

Accessories supplied with / optional
Piper 100, remote, target, Li-ion battery. Charger, car adapter cable and carrying case.
Article no. 748704
Article no. 748710
Article no. 748710
80 mm clamp used in conjunction with the Leica Digitex to apply a traceable signal to conductive buried utilities such as cables or pipes. The Multi Clamp is compatible with Leica Digitex signal transmitters with an output of 512 Hz to 33 kHz.
Article no. 813369
Compact dual frequency sonde used to trace drains, sewers and other non-conductive utilities.
Article no. 731053
Carries the Digisystem components (i.e. Digicat locator, Digitex signal transmitter and accessories).
Article no. 740307
Charger, t-series NiMH battery pack and charging cradle.
Article no. 798282
100 mm clamp used to apply a traceable signal to conductive buried utilities, such as cables or pipes. Compatible with Leica Digitex signal transmitters with an output of 33 kHz.
Article no. 731056
Cable set to apply a signal from Digitex onto property power cables. Compatible with Leica Digitex signal transmitters with an output of 33 kHz.
Article no. 731666 - UK version
731667 - North American version
731668 - European version
731669 - Swiss version
731670 - Australian version
A 55 mm diameter dual frequency sonde used to trace deep lying drains, sewers and other non-conductive utilities. MAXiSONDE can be attached to a range of equipment including drain rods, boring tools and inspection cameras. Powered by 3 x AA alkaline batteries, with a depth range of 12 metres.
Article no. 813368
Smart Charger with UK, EU, USA adaptors, i-series Locator NiMH battery pack and charging cradle.
Article no. 798281
