Safe and fast location of underground utilities
The Leica Digicat i-Series locators make ground surveys a simple and speedy task increasing on site safety. Defaulting to power mode, maximum sensitivity ensures operators are protected against lethal electrical cables, whilst additional modes are used to detect other buried utilities.
With its automatic controls and combined Auto mode, the Leica Digicat 500i locator has been specifically designed to reduce human error during the location process. Combined with its precise and reliable utility positioning, the Digicat 500i will prevent damage to underground utilities during excavation projects.
Article no. 50Hz 780225 / 60Hz 780226
The Leica Digicat 550i locator has the same functionality as the Digicat 500i, with the added benefit of depth estimation, when used in conjunction with either the Digitex 100t, 300t signal transmitter's or sonde with a compatible 8 kHz or 33 kHz output.
Article no. 50Hz 780231 / 60Hz 780232
The Leica Digicat 600i has the same functionality as the Digicat 500i with the added benefit of onboard memory and Bluetooth® connectivity. The onboard memory records information of how the Digicat 600i is used; this can then be uploaded using LOGiCAT software via Bluetooth® connectivity and additional analysis can identify operator trends, training requirements and how the locator was used following a near miss or utility strike. The Digicat 600i can communicate with Android and Windows devices, PC, Laptop, GIS field controllers.
Article no. 50Hz: 795939 / 60Hz: 795940
The Leica Digicat 650i locator has the same functionality as the Digicat 600i, with the added benefit of depth estimation, when used in conjunction with either the Digitex 100t, 300t signal transmitter's or sonde with a compatible 8 kHz or 33 kHz output.
Article no. 50Hz: 795941 / 60Hz: 795944

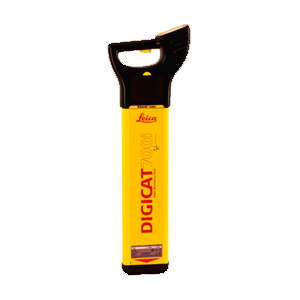

The Leica Digicat 700i has the same functionality as the Digicat 600i with the added benefit of integrated GPS positioning. GPS technology and data logging delivers increased data on where, when and how the locator has been used. The data files can be uploaded using LOGiCAT VU software via Bluetooth® connectivity and additional analysis can identify the position of use, site conditions, operator trends, training requirements and how the locator was used following a near miss or utility strike. The Digicat 700i can communicate with Apple, Android and Windows devices, PC, Laptop, GIS field controllers.
Article no. 50Hz: 821246 / 60Hz: 821247
The Leica Digicat 750i locator has the same functionality as the Digicat 700i, with the added benefit of depth estimation, when used in conjunction with either the Digitex 100t, 300t signal transmitter's or sonde with a compatible 8 kHz or 33 kHz output.
Article no. 50Hz: 50Hz: 821248 / 60Hz: 821251
| Technical Data | Digicat 500i | Digicat 550i | Digicat 600i | Digicat 650i | Digicat 700i | Digicat 750i |
|---|---|---|---|---|---|---|
| Frequency / Mode | Power mode 50 Hz or 60 Hz,Radio mode 15 kHz to 60 kHz,Transmitter mode 8 kHz, 33 kHz,Auto mode = Power + radio mode | |||||
| Depth | Power to 3 m, Radio to 2 m, Transmitter mode – Dependant on transmitter or Digimouse (Sonde) | |||||
| Depth estimation | Line mode – 0.3 to 3 m Sonde mode – 0.3 to 3 m 10% of depth in line or Sonde mode | Line mode – 0.3 to 3 m Sonde mode – 0.3 to 3 m 10% of depth in line or Sonde mode | Line mode – 0.3 to 3 m Sonde mode – 0.3 to 3 m 10% of depth in line or Sonde mode | |||
| Protection | Conforms to IP 54 | |||||
| Bluetooth® | Not available | Enabled | ||||
| Windows compatible | Yes | |||||
| Android compatible | Yes | |||||
| Apple compatible | Yes | |||||
| Batteries | 6 × AA alkaline (IEC LR6 supplied) | |||||
| Battery life | 40 hours intermittent use (at 20°C) | |||||
| Weight | 2.7 kg including batteries | |||||
| Compatibility | CSV file compatibility program | |||||
| Memory size | 32 MB memory | 64 MB memory | ||||
| PROTECT service offering | Manufacturer's Warranty: Lifetime No Cost period: 1 year | |||||
| Applications (trades & tasks) | Street works, excavation contractors, fencing contractors, pipe laying contractors. operators tasked with avoiding utility damage as part of the excavation process. | |||||
