The classical level

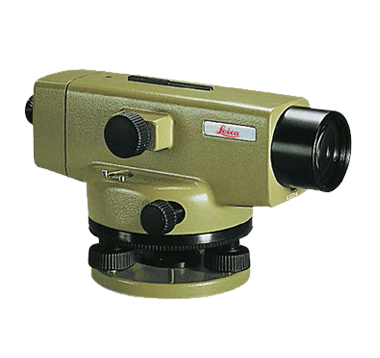

The Leica NA2 universal automatic level meets all requirements regarding precision, convenience and reliability. It was designed by surveyors and development engineers with years of experience, that know what a field instrument has to be able to do. The NA2 soon pays for itself, because it can be used for all types of surveying jobs - on building sites for routine levelling, in engineering projects and for geodetic control at all levels of accuracy.
Leica NA2 and Leica NAK2 are two universal automatic levels meet all the requirements of precision levelling.
Universal automatic level magnification 32× standard deviation per 0.7 mm (double-run levelling, depending on staff and technique).
Article no. 352036
Magnification: 32× Standard deviation per km 0.7 mm (doublerun levelling, depending on staff and technique).
Article no. 352039
Same as before, but horizontal circle 360 degrees, optical scale interval 10', reading by estimation 1'.
Article no. 352038
| Technical Data | NA2 | NAK2 |
|---|---|---|
| Magnification | 32× FOK73 eyepiece (optional): 40× | standard: 32× FOK73 eyepiece (optional): 40× |
| Angle measurement | 360°/400gon | |
| Standard deviation (per km double-run) | 0.7 mm/km (0.3 mm with parallel-plate micrometer) | |
| Dust / Water protection | IP 53 | |
| Working temperature | –20°C to +50°C | |
| Weight | 2.4 kg | |
| PROTECT service offering | Manufacturer's Warranty: Lifetime No Cost period: 3 years | |
In container, measuring range 10 mm.
Article no. 356121
For all instruments.
Article no. 199899
Allows steep sights.
Article no. 793979
For NA2/NAK2, exchangeable against standard eyepiece.
Article no. 346475
